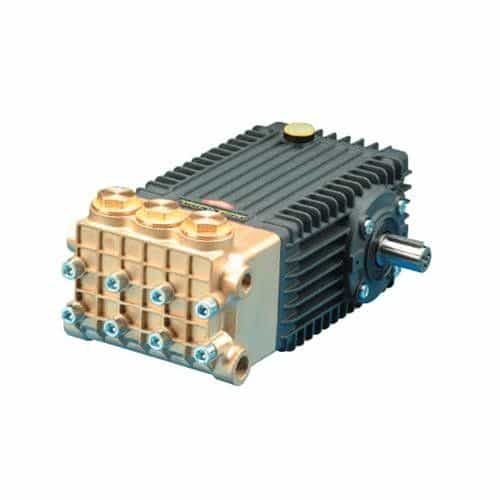

General Pump TSF2421 High Flow Triplex Pump, 12 GPM, 2500 PSI, Right Shaft
Brand:
Mfr. Model #:
TSF2421
KR Part #:
GPTSF2421
Weight:
43.40 lbs
Availability:
1
(0)The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 12.0 GPM at up to 2500 PSI.
Technical Specifications
Bore: 24 millimeter
Crankcase Capacity: 40.6 ounce
Horsepower: 20.5
Inlet Port: 3/4 inch
Max GPM: 12
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 21 millimeter
Product Description
General Pump TSF 66 Series Pump with Right Shaft
The General Pump TSF2421 features one of the leading pump frames in the pressure cleaning industry. A large-capacity fully anodized crankcase and new plunger design with improved thermal shock resistance provide for durability and reliability. Produces consistent high flow at mid-range pressures.
Dimensions: 14.94" x 9.78" x 6.99"
Features
- New valve cap for improved hydrostatic performance
- Oversized roller bearings
- Innovative new seal design for extended seal life
- Right side crankshaft
Specifications
- Maximum Flow: 12.0 GPM
- Maximum Pressure: 2500 PSI
- RPM: 1750 RPM
- Max Temperature: 165° F
- Inlet Port: 3/4"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
