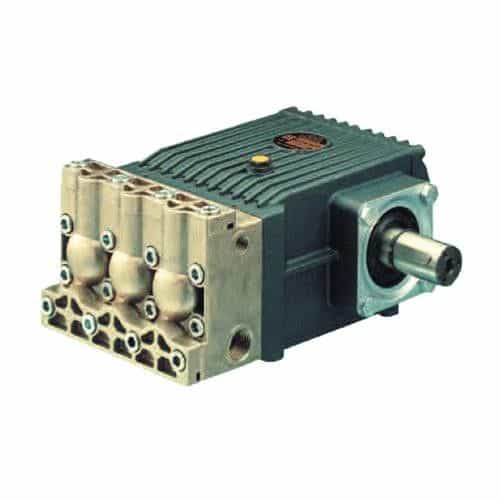

12 GPM - T Series 69 Pump

The General Pump T41 is a triplex plunger pump from the T Series 69 line of pumps and is engineered to produce a high flow rate. It produces a maximum flow rate of 12 GPM for applications requiring a large supply of fluid. Built with oversized connecting rods, heavy duty tapered bearings, and a die-cast anodized aluminum, oil-bath crankcase for durability and maximized longevity. Packings are lubricated by the solid ceramic plungers.

Specifications:

• Maximum Volume: 12.0 GPM
• Maximum Discharge Pressure: 900 PSI
• Maximum Pump Speed: 650 RPM
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 9 ft. water (7.9 Hg)
• Plunger Bore (in / mm): 1.417 in. / 36 mm
• Plunger Stroke (in / mm): .945 in. / 24 mm
• Oil Capacity: 50.7 oz.
• Maximum Fluid Temperature: 165 Degrees F
• Inlet Port Thread: 3/4-14 BSPP-F
• Discharge Port Thread: 3/8-19 BSPP-F
• Shaft Diameter: 1.378 in. / 35 mm
• Weight: 37 lbs.
• Dimensions: 12.9” x 11.9” x 7.3”
• GTIN: 682491026228

Features:

• The industry’s choice for high-flow applications
• Large-capacity, die-cast anodized aluminum, oil-bath crankcase
• Over-sized connecting rods for maximum life
• Heavy-duty tapered roller bearing
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves
