General Pump CW24L CW47 Series Triplex Plunger Pump - Left Shaft, 5 GPM, 1500 PSI
Brand:
Mfr. Model #:
CW24L
KR Part #:
GPCW24L
Weight:
30.00 lbs
GTIN:
682491106333
(0)Pressure cleaning industry preferred. Forged brass manifold. Maximum 2500 PSI, 1250 RPM and 5.0 GPM.

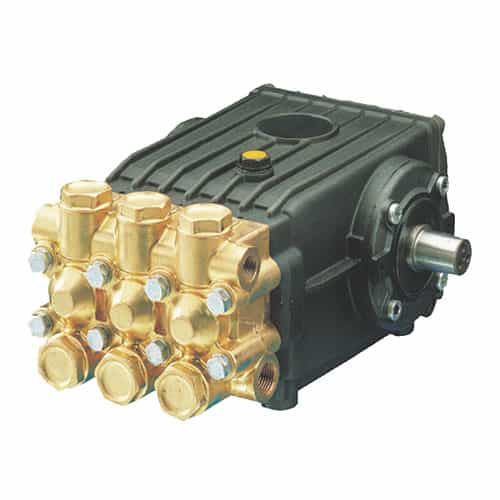

NOTE: Image shows a right shaft pump, this product is a left shaft version.
Prop 65
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 33.8 ounce
Inlet Port: 1/2 inch
Max GPM: 5
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1250
Shaft Diameter: 24 millimeter
Stroke: 16 millimeter
Outlet Port: 3/8 inch
Product Description
Pressure Cleaning Pump
General Pump's CW24 frame is the preferred in the pressure cleaning industry. Manifold is constructed with forged brass and an oil-bathed crankcase ensures constant lubrication. Inlet and outlet valves are made with unitized stainless-steel.
Specifications:
- Maximum Volume: 5.0 GPM
- Maximum Discharge Pressure: 2500 PSI
- Maximum Pump Speed: 1250 RPM
- Maximum Inlet Pressure: 125 PSI
- Plunger Bore: .787 in. / 20 mm
- Plunger Stroke: .630 in. / 16 mm
- Crankcase Oil Capacity: 33.8 oz.
- Maximum Fluid Temperature: 165 deg F
- Inlet Port Thread: 1/2-14 BSP-F
- Discharge Port Thread: 3/8-19 BSP-F
- Shaft Diameter: .945 in. / 24 mm
- Weight: 30 lbs.
- Dimensions: 11.4" x 9.2" x 7.2"
Features:
- Pressure cleaning industry preferred frame
- Forged brass manifold
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless-steel inlet and discharge valves
- Over-sized connecting rods
- Heavy-duty tapered roller bearing
