General Pump DG5000S Straight Rear Inlet Spray Gun - 10.5 GPM, 5000 PSI, Inlet 3/8 Inch NPT-F
Brand:
Mfr. Model #:
DG5000S
KR Part #:
GUK5000S
Weight:
1.20 lbs
GTIN:
682491116035
(0)A spray gun designed to accomodate work gloves. It withstands a maximum pressure of 5000 PSI and handles a maximum flow rate of 10.5 GPM. Inlet measures 3/8" NPT-F.
Prop 65
Technical Specifications
Max PSI: 5000
Max GPM: 10.5
Inlet Port: 3/8 inch
Outlet Port: 1/4 inch
Max Temperature: 300 degrees F
Product Description

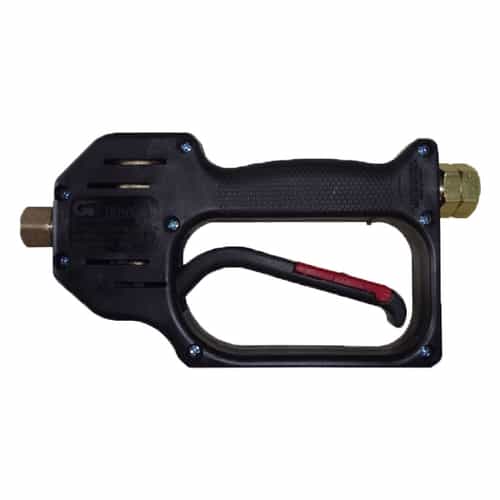

Large Handle Spray Gun
The General Pump DG5000S is a spray gun designed with flow passages designed to minimize pressure drop and maximize flow. It features a straight construction and a rear inlet. Both the inlet and outlet fittings are constructed with brass. The handle is large, allowing users to wear work gloves and operate this spray gun easily.Specifications:
- Maximum Volume: 10.5 GPM
- Maximum Pressure: 5000 PSI
- Maximum Temperature: 300º F
- Port Sizes: Inlet 3/8” NPT-F
- Outlet: 1/4” NPT-F
- Dimensions: 9.5” x 4.25” x 1.25”
- Weight: 1.4 lbs.
- Material: Brass, Stainless Steel, Plastic
- Repair Kit: 2100001
- Economic construction
- Brass inlet and outlet
- All flow passages designed for minimum pressure drop and maximum flow
- Large comfortable hand grip for work gloves
- Venting for excellent performance at high temperatures
- Durable glass-filled housing
- Trigger made from 30% glass filled Nylon 6.6
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
