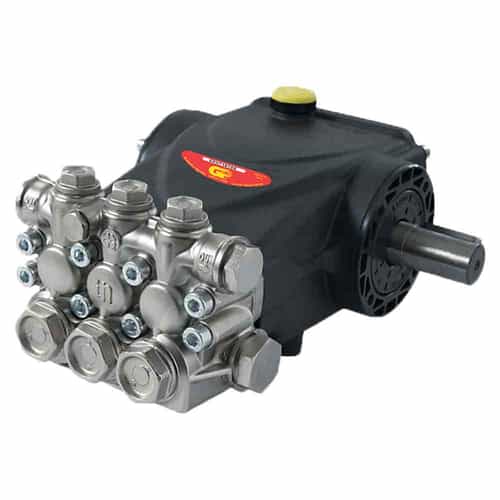

General Pump EPHT1812S Emperor EPHT Series Triplex Plunger Pump - 3.9 GPM, 2465 PSI, 1750 RPM, Hi-Temp Seals
Brand:
Mfr. Model #:
EPHT1812S
KR Part #:
GPEPHT1812S
Weight:
18.00 lbs
Availability:
1
(0)The Emperor EPHT series features patented high tech packings composed of dynamic low-pressure seal retainers, superior low-pressure and high pressure seals, innovative intermediate rings. 3.9 GPM flow, 2465 PSI max. 24mm solid right side shaft.
Prop 65
Technical Specifications
Max GPM: 3.9
Max PSI: 2465
Max Temperature: 185 degrees F
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 18 millimeter
Stroke: 10 millimeter
Shaft Diameter: 24 millimeter
Product Description
3.9 GPM General Pump With High Temp Seals
This EPHT series pump is a triplex plunger model has solid ceramic plungers with a dual guide system and a solid left hand shaft. Its new optimized outlet valves help provide a long lasting life. All the patented technology in the Emperor series plus high tech packings with seals capable of handling high temperature applications.
Dimensions: 9.5" X 8.38 X 5.1"
- Nickle-Plated Manifold
- Patent/pending plunger guide bushing
- Solid ceramic plungers with an innovative dual guide system.
- Optimized outlet valves
- New dual lip oil seal
Specifications:
- Max Volume: 3.9 GPM
- Max Discharge Pressure: 2465 PSI
- Max Pump Speed: 1450 RPM
- Max Inlet Pressure: 125 PSI
- Stroke: 12mm
- Bore: 18mm
- Horsepower: 5.6
- Inlet: 1/2"-14 BSPF
- Discharge port: 3/8"-19 BSPF
- Right-hand Solid Shaft: 24mm
- Weight:18 lbs
