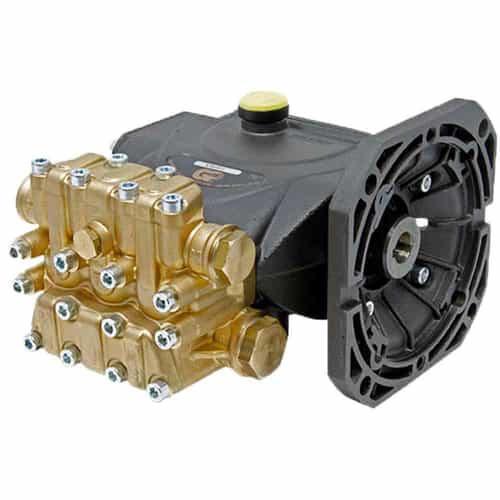

General Pump ETB1507E345 Electric ETB Series Triplex Plunger Pump - 3.2 GPM, 2610 PSI, 3400 RPM
Brand:
Mfr. Model #:
ETB1507E345
KR Part #:
GPETB1507E345
Weight:
11.00 lbs
(0)A triplex plunger pump with a forged brass manifold and ceramic plungers to deliver a longer life span. The NEMA 56C hollow shaft measures 5/8". Delivers a maximum flow rate of 3.2 GPM.
Prop 65
Technical Specifications
RPM: 3400
Max PSI: 2610
Max GPM: 3.2
Bore: 15 millimeter
Horsepower: 5.5
Stroke: 7.2 millimeter
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Shaft Diameter: 5/8 inch
Max Temperature: 165 degrees F
Capacity: 8.5 oz
Product Description
5/8" Hollow Shaft Plunger Pump
The General Pump ETB1507E345 is an electric triplex plunger pump from the ETB series. It is built with a forged brass manifold to increase the durability of the pump's head. Plungers are made with solid ceramic to improved strength. Designed with a 5/8" hollow shaft that meets NEMA 56C flange standards. The pump is engineered to endure a maximum pressure of 2610 PSI, handles a maximum speed of 3400 RPM, and produces a flow rate of 3.2 GPM.Specifications:
- GPM: 3.2
- PSI: 2610
- RPM: 3400
- Bore: .591 in./15 mm
- Stroke: .283 in./7.2 mm
- HP: 5.5 EBHP
- Maximum Inlet Pressure: 125 PSI
- Max. Inlet Vacuum: 3 ft. water (2.6 Hg) Flooded
- Oil Capacity: 8.5 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 1/2"-14 BSP-F
- Discharge Port Thread: 3/8"-19 BSP-F
- Shaft Diameter: 5/8" Hollow
- Weight: 11.0 lbs.
- Dimensions: 7.3" x 7.4" x 5.5"
- Durable forged brass manifold
- Dust protection chamber
- Solid ceramic plungers
- Advanced plunger mounting system
- Valve cover for ease of service
- NEMA 56C flange, 5/8" hollow shaft
