General Pump EPHT1810SL Emperor EPHT Series Triplex Plunger Pump - 3.3 GPM, 2465 PSI, 1450 RPM, Hi-Temp Seals
Brand:
Mfr. Model #:
EPHT1810SL
KR Part #:
GPEPHT1810SL
Weight:
18.00 lbs
(0)The Emperor EPHT series features patented high tech packings composed of dynamic low-pressure seal retainers, superior low-pressure and high pressure seals, innovative intermediate rings.

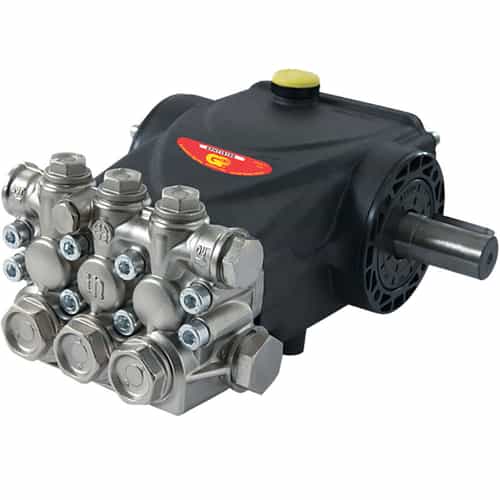

NOTE: Image for illustrative purposes. Although a right shaft pump is shown, this product is a left shaft pump.
NOTE: Image for illustrative purposes. Although a right shaft pump is shown, this product is a left shaft pump.
Prop 65
Technical Specifications
Max PSI: 2465
Max GPM: 3.3
RPM: 1450
Horsepower: 5.6
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Liquid Temperature: 185 degrees F
Stroke: 10 millimeter
Shaft Diameter: 24 millimeter
Bore: 18 millimeter
Product Description
3.3 GPM General Pump With High Temp Seals
This EPHT series pump is a triplex plunger model has solid ceramic plungers with a dual guide system and a solid left hand shaft. Its new optimized outlet valves help provide a long lasting life. All the patented technology in the Emperor series plus high tech packings with seals capable of handling high temperature applications.
Dimensions: 9.5" X 8.38 X 5.1"
- Nickle-Plated Manifold
- Patent/pending plunger guide bushing
- Solid ceramic plungers with an innovative dual guide system.
- Optimized outlet valves
- New dual lip oil seal
Specifications:
- Max Volume: 3.3 GPM
- Max Discharge Pressure: 2465 PSI
- Max Pump Speed: 1450 RPM
- Max Inlet Pressure: 125 PSI
- Stroke: 10mm
- Bore: 18mm
- Horsepower: 5.6
- Inlet: 1/2"-14 BSPF
- Discharge port: 3/8"-19 BSPF
- Left-hand Solid Shaft: 24mm
- Weight:18lbs
