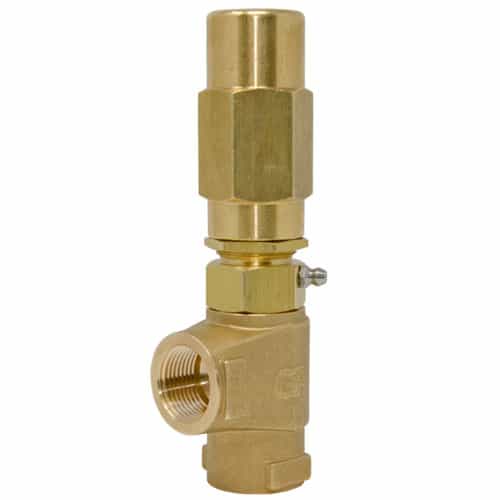

General Pump CWR4525 Brass Regulating Valve, 45 GPM, 2500 PSI
Brand:
Mfr. Model #:
CWR4525
KR Part #:
GPCWR4525
Weight:
2.80 lbs
(0)Regulates pressure and protects against spikes. Great for in-bay automatics.
Prop 65
Technical Specifications
Inlet Port: 3/4 inch
Max GPM: 45
Max PSI: 2500
Max Temperature: 195 degrees F
Product Description
Brass Car Wash Regulator
The General Pump CWR4525 brass regulating valve has multiple connection points for easy installation, and is great for use in automatic car washes! It works perfectly with General Pump Emperor HTCK pumps, and protects against pressure spikes. Plus, a grease zerk keeps the piston and seal lubricated. This valve can handle flow rates up to 45 GPM and pressures up to 2500 PSI.
Please note, that if this valve is installed with a positive displacement pump, the manufacturer recommends incorporating a safety relief device (not included).
Dimensions: 6.6" x 1.6"
- Great for use with in-bay automatic car washes
- Compatible with General Pump Emperor HTCK pumps
- Multiple connection points
- Lubricated piston and seal
- Durable brass body
- Regulates pressure and protects against spikes
- Maximum flow: 45 GPM
- Rated pressure: 2500 PSI
- Maximum temperature: 195 deg F
- Inlet: 3/4" NPT-F
- Outlet: 1/2" NPT-F
- General Pump item #CWR4525
- Weight: 2.0 lbs.
