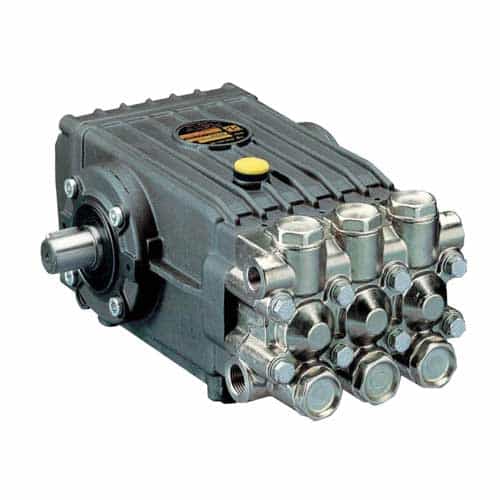

General Pump TS2013 T47 Series Belt Drive 5.5 GPM Pump - 3000 PSI, Left-Mounted
Brand:
Mfr. Model #:
TS2013L
KR Part #:
GPTS2013L
Weight:
32.00 lbs
GTIN:
682491124009
(0)A triplex plunger pump with a forged brass manifold and solid ceramic plungers. 5.5 GPM, 3000 PSI. This version has the shaft mounted on the left.
Prop 65
Technical Specifications
RPM: 1750
Max Temperature: 165 degrees F
Max PSI: 3000
Max GPM: 5.5
Inlet Port: 1/2 inch
Crankcase Capacity: 40.6 ounce
Shaft Diameter: 24 millimeter
Bore: 20 millimeter
Stroke: 13 millimeter
Product Description
Left Shaft 5.5 GPM Plunger Pump
The General Pump TS2013L pump is part of the T47 Series, a preferred line of pumps in the pressure cleaning industry. This is a triplex plunger pump with a forged brass manifold and ceramic plungers. In addition, it has a large capacity anodized aluminum crankcase, oversized connecting rods, and a heavy duty tapered roller bearing. This 47 Series triplex plunger pump is designed for belt-drive applications.
This is a left-mounted version of the TS2013 pump.
Dimensions: 12.6" X 9.2" X 6.9"
Details:
- Forged brass manifold.
- Large capacity, die/cast anodized aluminum oil/bath crankcase.
- Over/sized connecting rods for maximum life.
- Heavy/duty tapered roller bearing.
- Solid ceramic plungers with continuously lubricated packings.
- Unitized stainless steel inlet and discharge valves
- Mounted on the left side
Specifications:
- Max GPM: 5.5
- MAX PSI: 3000
- RPM: 1750
- Bore: .787"
- Stroke: .512"
- Max Temp: 165
- Shaft diameter: .945"
UPC:
- 682491124009
