3.5 GPM, 1750 RPM, 3685 PSI

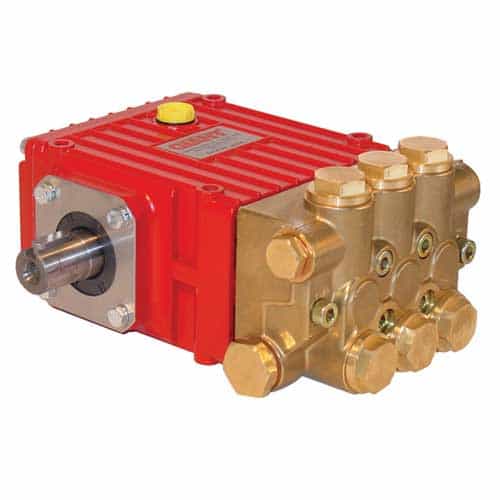

Positive displacement triplex plunger pump ideal for direct or belt drive applications. Features include: Aluminum crankcase w/ sight glass and vented dipstick, ground and polished crankshaft, bronze connecting rods, stainless steel plunger bases, ceramic plungers, fabric reinforced nitrile seals, stainless steel valves, and forged brass manifold. Offers high performance and reliability.

Specifications:

• Maximum inlet pressure: 145 PSI
• Maximum temperature: 160° F
• Plunger diameter: 0.71"
• Stroke: 0.42"
• Crankshaft diameter: 24 mm
• Crankshaft rotation: Top of pulley towards manifold
• Left shaft
• Inlet ports: (2) 1/2" BSP
• Discharge ports: (2) 3/8" BSP
• Crankcase oil capacity (short): 14.2 fl. oz.
• Crankcase oil capacity (extended): 17.0 fl. oz.
• NPSH Required: 26.2 Ft.-head
• TC face
• 1 1/8" aluminum coupler
• Thermal

Materials:

• Manifold: forged brass
• Plungers: solid ceramic oxide
• Valves: high grade stainless steel
• Seals: nitrile with fabric reinforcing
• Gear end: aluminum die-cast
