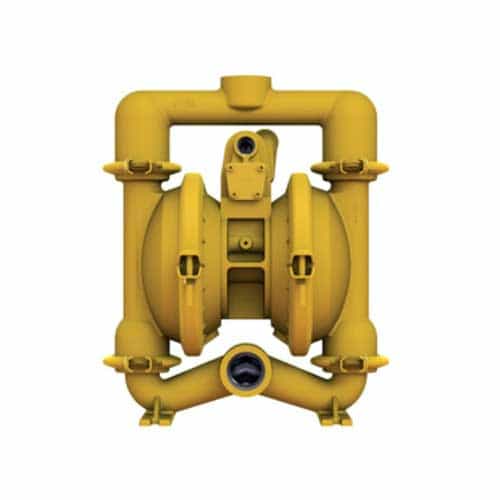

Versa-Matic E4AA5T5A0 Aluminum E-Series Air Diaphragm Pump with PTFE - 1 1/2 x 1 1/4 in. Ports, 56 GPM

Brand:
Versa-Matic
Mfr. Model #:
E4AA5T5A0
KR Part #:
VME4AT
Weight:
41.00 lbs
GTIN:
814338026331
Usually Ships in 2 Weeks
MSRP
$3,207.97
Now Only!
$2,427.66
starstarstarstarstar (0)
Aluminum-body double diaphragm pump operated by air power. Clamp-on construction.
More Info...



Technical Specifications

Inlet Port: 1 1/2 inch
Max GPM: 56
Max PSI: 125
Max Temperature: 220 degrees F

Product Description

Clamp Style Aluminum Body PTFE Diaphragm Pump

The Versa-Matic E4AA5T5A0 pump is an air-powered double diaphragm pump made with aluminum and PTFE inner components. It has a 1.5" NPT suction inlet, a 1.25" NPT discharge outlet, and a max flow rate of 56 GPM. Reliably and safely transfer chemicals and liquids with this bolted, corrosion-resistant, leak-free pump.

Specifications:

  • Maximum Flow Rate: 56 GPM
  • Suction Port: 1 1/2" NPT
  • Discharge Port: 1 1/4" NPT
  • Aluminum construction body
  • Maximum Discharge Pressure: 125 PSI
  • Maximum Temperature: 220° Fahrenheit
  • Air Inlet: 1/2" NPT
  • Air Exhaust: 3/4" NPT
  • Dry Suction Lift: 19'
  • Wet Suction Lift: 31'
  • Diaphragm: PTFE
  • Check Type: PTFE ball valve
  • Seat: Aluminum/PTFE O-ring
  • Dimensions: 18" H x 11.5" W x 14.25" D
  • Maximum Noise Level: 101 dB
