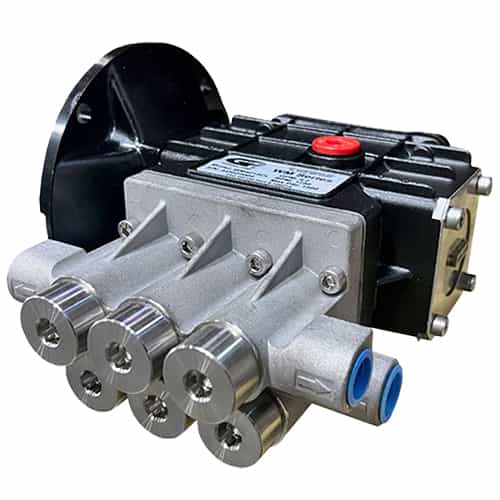

General Pump WM4215CL Reverse Osmosis Pump, 4.2 GPM, 1500 PSI, 1750 RPM, Left Shaft
Brand:
Mfr. Model #:
WM4215CL
KR Part #:
GPWM4215CL
Weight:
14.00 lbs
GTIN:
682491030980
Availability:
2
(0)This General Pump WM4215CL has dual inlet and outlet porting. Features a 316 stainless steel wet-end, 300 Series stainless steel fasteners, and has a new generation seal system that allows for a longer life. Produces up to 4.2 GPM, at up to 1500 PSI.
Technical Specifications
Max PSI: 1500
RPM: 1750
Crankcase Capacity: 12 ounce
Inlet Port: 1/2 inch
Max Temperature: 140 degrees F
Shaft Diameter: 5/8 inch
Bore: 18 millimeter
Stroke: 12.5 millimeter
Shaft Diameter: 15.875 millimeter
Product Description
1500PSI Reverse Osmosis Pump with Left Side Shaft
The General Pump WM4215C features 316 Stainless Steel wet-end and 300 Series stainless steel fasteners. This WM series pump has a parallel inlet and outlet valve design for efficiency and easy maintenance. It has innovative wear resistant high and low-pressure seals as well as a dual inlet and outlet porting.
Dimensions: 9.9" X 7.5" X 6.0"
- 316 stainless steel fluid end for superior corrosion protection.
- Solid ceramic plungers with advanced surface finish assure durability and longevity.
- Compact design offers solutions to space limitations.
- Parallel inlet and outlet valve design for efficiency and easy maintenance.
- NEMA 56C flange with 5/8" hollow left side shaft
- Corrosion resistant valve and packing design
- Innovative wear resistant high and low-pressure seals
- Dual inlet and outlet porting
- Anodized crankcase for corrosion resistance
Specifications:
- Max Volume: 4.2 GPM
- Max Discharge Pressure: 1500 PSI
- Max Pump Speed: 1750 RPM
- Max Inlet Pressure: 50 PSI
- See the data sheet under “Manuals” for more details
