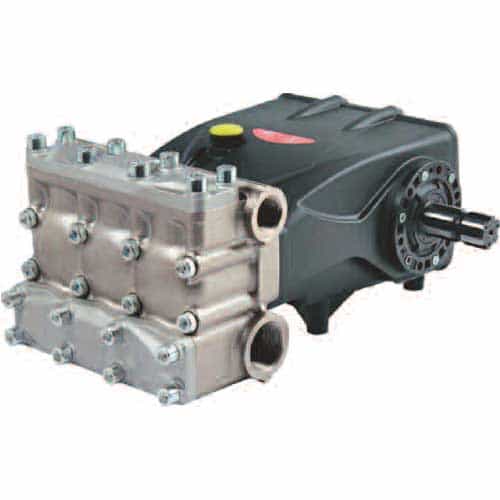

AB Series Triplex Right Shaft Plunger Pump

Triplex design keeps the pump functioning in high pressure applications. Pump operates at pressures up to 870 PSI. Is able to pump 47.6 gallons per minute. Features solid ceramic plungers. Inlet and outlet valves have been optimized. Manifold is treated with anti-corrosion treatment. Cast-iron manifold features aluminum valve covers.

Product Features

• Triplex plunger pump

• Specifically designed for the agricultural market

• Solid ceramic plungers

• Optimized inlet and outlet valves

• Dual lip oil seal

• Dual shaft configurations

• Smooth shaft available

• Cast iron manifold with aluminum valve covers

• "HR" high resistance anti-corrosion treatment on manifold


Specifications

• Pump Model: AB180DP

• Maximum Volume: 47.6 GPM

• Maximum Discharge Pressure: 870 PSI

• Horsepower: 28.1 HP

• Maximum Pump Speed: 650 RPM

• Maximum Inlet Pressure: 45 PSI

• Plunger Bore: 1.97 in. / 50 mm

• Plunger Stroke 1.78 in. / 45 mm

• Oil Capacity: 77.8 oz

• Inlet Port Thread: 1-1/2" BSPP

• Discharge Port Thread: 1" BSPP

• Shaft Diameter: 1.375 ASAE - DUAL

• Weight: 90.4 lbs.

• Dimensions 17.48" x 17" x 8.29"
