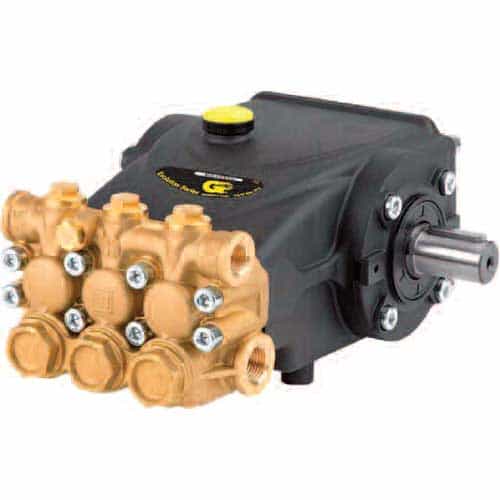

General Pump ES2012S ES Series Pump 4.76 GPM, 4000 PSI, Right Shaft
Brand:
Mfr. Model #:
ES2012S
KR Part #:
GPES2012S
Weight:
21.00 lbs
Availability:
3
(0)Reliable performance from General Pumps ES series, providing up to 4.76 GPM at up to 4000 PSI. Forged brass manifold and solid ceramic plungers provide for long pump life. Features exclusive protection chamber between crankcase and manifold, as well as new plunger guide bushing.
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 22 oz.
Horsepower: 13
Inlet Port: 1/2 inch
Max GPM: 4.76
Max PSI: 4000
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 12 millimeter
Product Description
ES Series Plunger Pump - Solid Shaft
General Pump Evolution ES Series pumps boast reliability and long-lasting service life. Features forged brass manifold and plunger guide bushing for durability as well as an innovative protection chamber between the crankcase and manifold! 24mm solid shaft.
Pump Dimensions: 10.4" x 8.8" x 5.4"
- Tough forged brass manifold
- Plunger guide bushing
- Ceramic plungers w/ dual glide system
- Optimized outlet valves for reliable use
- Unique protection chamber separates crankcase and manifold
- Dual lip oil seal
- Uses GP Series 100 oil
- UPC: 682491077886
Specifications:
- Max Flow: 4.76 GPM
- Max Pressure: 4000 PSI
- Max Pump Speed: 1750 RPM
- Max Fluid Temperature: 165°F
- Inlet Port: 1/2" BSP-F
- Outlet Port: 3/8" BSP-F
