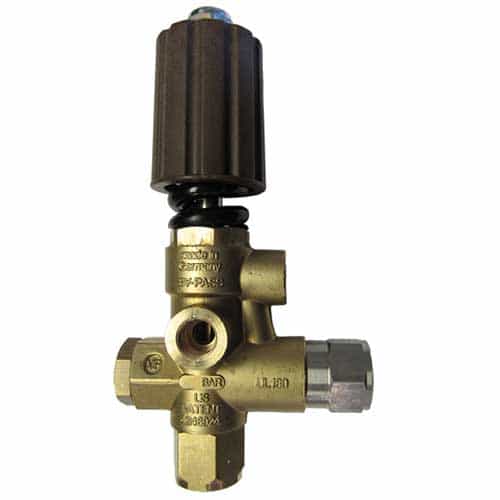

Giant Pumps 22760-01 Pressure Actuated Unloader, 3045 PSI, 1.3 - 8.0 GPM, Viton Seals
Brand:
Mfr. Model #:
22760-01
KR Part #:
PU22760-01
Weight:
2.03 lbs
Availability:
2
Manuals
(0)Protect your pumps and easily regulate flow rate in your car wash pump systems. Brass unloader, 3/8" inlet and outlet. Handles continuous pressure up to 3045 PSI. Viton seals for durability and resilience.
Prop 65
Technical Specifications
Min GPM: 1.3
Max GPM: 8.0
Min PSI: 145
Max PSI: 3045
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Bypass Port: 1/4 inch
Product Description
Pressure Actuated Unloader
The Giant 22760-01 pressure actuated unloader regulates the flow in the system and maintains system pressure via an adjustable hand-wheel that controls the amount of tension on a pressure spring. When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure. The unloader is capable of handling one or more shut-off guns and should be run with no bypass (if the full flow from the pump is going through the unloader). It actuates at around 10% above the system pressure. Features Viton seals for resilience in situations where chemicals are in use.
Specifications
- Normal Pressure Range: 145 PSI to 3045 PSI
- Flow Range: 1.3-8.0 GPM
- Maximum Temperature: 160°F
- Inlet Port: 3/8" FNPT
- Outlet Port: 3/8" FNPT
- Bypass Port: 1/4" FNPT
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
