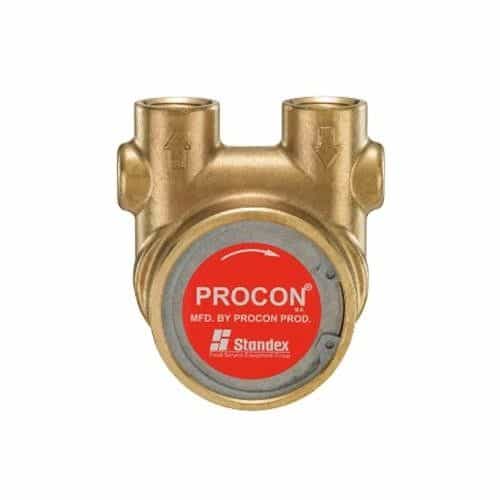

Procon 104E240G12BA200 Series 4 Brass Rotary Vane Pump - 240 GPH, 250 PSI, 1725 RPM
Brand:
Mfr. Model #:
104E240G12BA200
KR Part #:
PP2507EFX
Weight:
3.00 lbs
(0)Brass body rotary vane pump with a positive displacement design. This brass pump has bolt-on mounting, ethylene propylene seals, and 1/2" inlet and outlet ports. Performance details include a 240 GPH flow rate and a 200 PSI maximum pressure setting.
Technical Specifications
Inlet Port: 1/2 inch
Max PSI: 250
Max GPM: 4
Product Description
Series 4 Positive Displacement Rotary Vane Pump
The Procon 104E240G12BA200 Pump is a brass rotary vane pump from the Procon 4 Series. This positive displacement model pump is designed to operate virtually maintenance-free. It has 1/2" NPT inlet and discharge ports, a maximum flow rate of 240 GPH, and a pressure range from 151 to 250 PSI.
Specifications:
- Rotary vane, positive displacement design
- Non-food grade (1.5% maximum lead) - no agency approval
- Bolt-on mounting with single flat drive
- 240 GPH
- 151 to 250 PSI pressure range - 170 PSI default relief valve spring setting
- 200 PSI pressure relief valve setting
- Ethylene propylene elastomer type 21 seals
- Plastic hi-temp solid valve type
- Clockwise rotation
- SPCL clearances
- 1725 RPM nominal speed
- 6' maximum lift self priming
- Inlet: 1/2" NPT
- Outlet: 1/2" NPT
Features:
- Self priming
- Maintenance free
- Low vibration and pulsation characteristics
Applications:
- Circulation
- Reverse osmosis
- Booster
- Solar applications
- Hydraulic systems
- Desalination
