General 100998 13 GPM 3/8in. x 1/2in. Pressure Regulator - 250-1000 PSI
Brand:
Mfr. Model #:
100998
KR Part #:
GPP100998
Weight:
2.00 lbs
GTIN:
682491088387

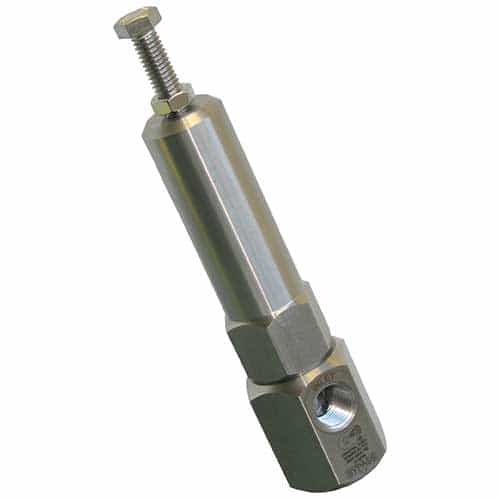

(0)Stainless steel car wash valve to protect your car wash system from pressure spikes. Regulates pressure while absorbing pulsations in the system. Perfect for use in multiple drop and multiple gun installations.
Technical Specifications
Max GPM: 13
Max Temperature: 190 degrees F
Max PSI: 2000
Inlet Port: 3/8 inch
Outlet Port: 1/2 inch
Product Description
Pressure Unloader Valve
This General Pump 100998 valve keeps pressure levels consistent in your car wash fluid system. This regulator valve has a maximum pressure of 1000 psi, a maximum flow rate of 13 GPM, and a maximum temperature of 190 degrees Fahrenheit. It has a 3/8" FNPT inlet and a 1/2" FNPT outlet.
Specifications:
- 1000 PSI maximum pressure
- 13 GPM flow rate
- 190° F maximum temperature
- 3/8" NPT-F inlet
- 1/2" NPT-F outlet
- Adjustable functionality
- Stainless steel construction
- Dual function - regulates pressure and absorbs pulsation
- Maintains pressure too within 5% of the setting
Applications:
- Full and self-service car wash bays
- Power washing
- Multiple drop, multi-gun installations
- Most applications with a fixed discharge volume
