General Pump YU5075KS Pressure Trapping Unloader, Red Knob - 5075 PSI, 10 GPM, 3/8 Inch BSP MxF
Brand:
Mfr. Model #:
YU5075KS
KR Part #:
GPU5075KS
Weight:
2.00 lbs
GTIN:
682491142539
(0)A pressure trapping unloader. Engineered to protect car wash equipment from low pressure spikes. Handles a maximum pressure of 5075 PSI.
Prop 65
Technical Specifications
Max GPM: 10
Max GPM: 5650
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 195 degrees F
Product Description

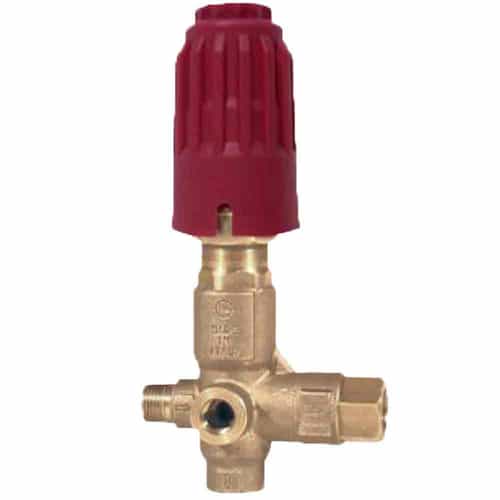

3/8" BSP MxF - Red Knob Unloader
The General Pump YU5075KS is a pressure trapping unloader with a red knob that is designed to protect your car wash equipment from low pressure spikes. Rated to handle a consistent pressure of 5075 PSI and a maximum pressure of 5650 PSI. Tolerates a flow rate of 10 GPM. Inlet and outlet connections measure 3/8" BSP. The bypass connection measures 1/2" BSP-F. Constructed with a brass housing, Buna-N seal, and stainless steel internal components for superior durability and corrosion resistance.
Specifications:
- GPM: 10.0
- Rated PSI: 5075
- Max PSI: 5650
- Inlet: 3/8" BSP-M
- Outlet: 3/8" BSP-F
- Bypass: 1/2" BSP-F
- Temperature: 195° F
- Dimensions: 3.6” x 1.4” x5.3”
- Materials: Brass, Stainless Steel, Buna-N
- Weight: 2.0 lbs.
- GTIN: 682491142539
Features:
- Premium pressure compensated unloader for low spike pressures.
- Adjustable maximum pressure settings
- Stainless Steel internal components for maximum durability
