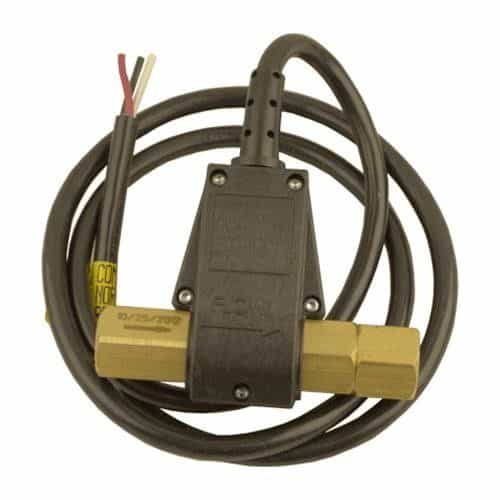

General Pump 100975 Tri-Magnet Technology Reedless Flow Switch - 12.0 GPM, 5000 PSI, 3/8 x 3/8 Inch NPT-F
Brand:
Mfr. Model #:
100975
KR Part #:
GPP100975
Weight:
1.03 lbs
GTIN:
682491035244
(0)A reedless flow switch that utilizes tri-magnet technology. Can be mounted in any position and handles a maximum pressure of 5000 PSI and flow rate of 1.25 GPM.
Technical Specifications
Max PSI: 5000
Max GPM: 12
Outlet Port: 3/8 inch
Inlet Port: 3/8 inch
Max Temperature: 180 degrees F
Min Temperature: 40 degrees F
Voltage AC: 250
Product Description
TMT Flow Switch
General Pump's 100975 is a reedless flow switch that controlled by Tri-Magnet Technology. Utilizes microswitch technology eliminating the need for a reed switch. Constructed with brass and stainless-steel components to handle a maximum pressure of 5000 PSI. Requires a flow of 1.25 GPM to activate and can be mounted in any position.
Specifications:
- GPM: 12.0
- Minimum Flow Required for Activation: 1.25 GPM
- Max PSI: 5000
- Operating Temperature Range: 40 - 180 °F
- Electrical Lead Length: 48" - 18AWG
- Switch Ratings Max Switching Voltage: 250 VAC
- Max Switching Current: 5 AMPS
- Resistance with Leads: 30 OHM
- Inlet: 3/8" NPT-F
- Outlet: 3/8" NPT-F
- Voltage: 250 VAC
- Material: Brass, Stainless Steel, Plastic, Nickel-plated Neodymium
- Dimensions: 3.91" x 1.4" x 2.95"
- Weight: 1.25 lbs.
Features:
- Micro-switch technology eliminates reed switch
- Activates with 1.25 GPM flow
- Stainless Steel shuttle
- Minimal pressure drop up to 12 GPM flow
- Can be mounted in any position
UPC:
- GTIN: 682491035244
