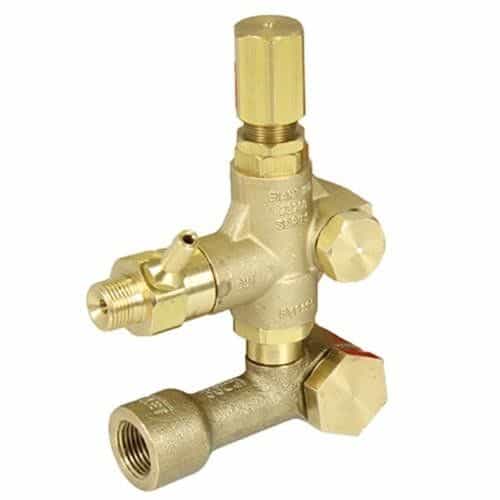

Unloader with Fixed Injector 2.1mm
Brand:
Mfr. Model #:
23270-2.1
KR Part #:
PU23270-21
Weight:
2.00 lbs
(0)A direct mount unloader designed to connect with P200 Series pumps. It comes equipped with a chemical injector with a 2.1mm orifice. Handles a maximum pressure of 3000 PSI and flow rate of 6.6 GPM.
Note: Requires a partial bypass to operate.
Prop 65
Technical Specifications
Max GPM: 6.6
Max PSI: 3000
Max Temperature: 194 degrees F
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Product Description
6.6 GPM - Direct Mount Unloader w/ Chemical Injector
The Giant Pumps 23270-2.1 is an unloader that is engineered for compatibility with P200 Series pumps. It features an integrated unloader that has a 2.1 mm orifice. This direct mount unloader is able to withstand a maximum pressure of 3000 PSI and a flow rate of 6.6 GPM. Inlet measures 1/2" FNPT and the outlet measures 3/8" MNPT. This unloader requires a partial bypass to operate properly.
Specifications:
- Manufacturer: Giant Pumps
- Product Number: 23270-2.1
- Includes: 2.1 mm Injector
- Max GPM: 6.6
- Max Pressure: 3000 PSI
- Max Temp: 194° F
- Inlet: 1/2" FNPT
- Outlet: 3/8" MNPT
- Bypass: Internal
- Compatible Pumps: P200
