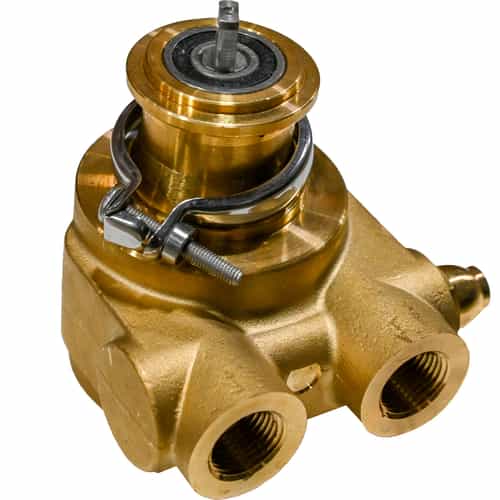

Fluid-O-Tech PA801 Brass Rotary Vane Pump - Clamp Mount, 264 GPH, 1/2 NPT
Brand:
Mfr. Model #:
PA801
KR Part #:
FTPA801
Weight:
4.11 lbs
(1)Brass body fluid pump with a positive displacement rotary vane design. Includes a carbonator style clamp and a pressure relief valve. 264 GPH, 1/2" NPT inlet/outlet ports, NSF safe.
Product Description
264 GPH Brass Rotary Vane Pump
This Fluid-O-Tech PA1011 Rotary Vane Pump is made with brass and has a carbonator clamp mount. This NSF compliant rotary vane pump has a Buna-N seal, a slotted stainless steel shaft, and a brass key. Excellent for water treatment, filtration, reverse osmosis, and beverage systems.
Features and Specifications:
- Rotary vane design
- Clamp style mounting
- Brass housing
- 264 GPH maximum flow rate
- 245 GPH minimum flow rate
- 1/2" female NPT inlet and outlet ports
- 1450 RPM maximum speed
- 260 PSI maximum pressure
- 158° Fahrenheit maximum temperature
- NSF standard compliance
- Pressure relief valve included - 125 PSI relief valve setting
Applications:
- Car washes - reverse osmosis
- Restaurant - beverage and water filtration and dispensing
- Water treatment
- Cooling and boosting systems
- Fuel injection systems
