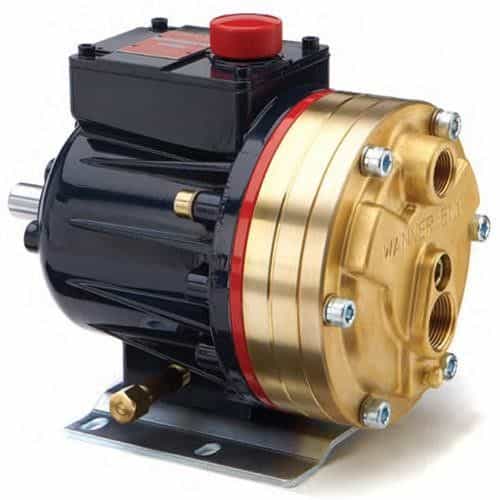

D-10 Series Seal-less Continuous-Duty Pump

The Hydra-Cell D10XKBTHFEYB pump is part of the versatile line of D-10 pumps that function well in tough environments like car washes and industrial manufacturing mills. This belt-driven pump has a high-quality brass head, stainless steel valves, and Elgiloy valve springs.

The D10XKBTHFEYB pump is self-priming, can run dry without damage, and can handle the full spectrum of low to high viscosity fluids. Versatile, reliable pump for constant duty in a wide range of applications!

Specifications:

• 8.1 GPM
• 1450 RPM
• Brass pump head
• Kel-Cel NPT ports
• 1" NPT inlet
• 3/4" NPT outlet
• 7/8" shaft diameter
• Buna-N diaphragm and o-rings
• 17-4 stainless steel valve and valve seat
• Elgiloy valve springs
• Nylon (Zytel) valve retainers
• Tapered roll bearings40-wt oil for continuous duty
• 1.1 quartz oil capacity
• 500 microns maximum solids size
• 250° Fahrenheit maximum temperature
• Reverse shaft rotation (bi-directional)
• Self-priming

Features:

• Pumps the full spectrum of low-to-high viscosity fluids
• Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps
• Simple, compact design reduces initial investment and lowers maintenance costs
• Operational efficiencies reduce energy costs
• Able to run dry without damage or additional maintenance to the pump
• Tolerates non-ideal operating conditions
• Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace
