Baldor L1430T Motor 5HP, Single Phase, 230V, 184T Frame
Brand:
Mfr. Model #:
L1430T
KR Part #:
MBL1430T
Weight:
78.00 lbs
GTIN:
781568196595
(0)5 horsepower Baldor electric motor with dynamically balanced motors for high-power performance at your facility or on a mobile unit. Heavy gauge steel frame and pressure cast aluminum end plates with ribbed design for rigidity provide durability. Great for compressors, pumps, conveyors, machine tools, air handling, and other general-purpose applications.
Product Description

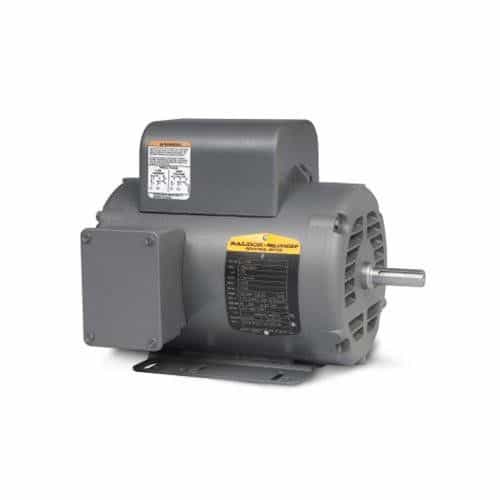

Baldor L1430T 5HP General Purpose Motor
Baldor electric motor with dynamically balanced motors for high-power performance at your facility or on a mobile unit. Heavy gauge steel frame and pressure cast aluminum end plates with ribbed design for rigidity provide durability. Great for compressors, pumps, conveyors, machine tools, air handling, and other general-purpose applications.
Features:
- Pressure cast aluminum end plates with ribbed design for rigidity
- Locked drive end bearing
- Heavy gauge steel frame
- Optimized airflow design provides higher horsepower in smaller package
- Manual thermal overload located in the conduit box
- Open drip proof motor
- UL and CSA recognized component approval
- 84.0% efficiency at 100% load
Specifications
- RPM: 1725
- Horsepower: 5.0
- Phase: Single
- Voltage AC: 230
- Amps: 20.6
- Max Ambient Temperature: 104°F
- KVA Code: H
General purpose including compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc.
